Due to the increased diversity of motor oils and coolants, which car manufacturers have prescribed for us as imperative, the volume of bulk oil at garage businesses has decreased. Conversely, the volume of smaller packaging units, such as 20 and 60 liters, increasing. The new modular MPM 20-60 liter storage system then becomes a real co-solution for universal garage businesses. To be able to easily service 60-liter drums, the correct type of spigot and bleeding of the drum is important. There are two types of drums: metal MPM drums and plastic drums (Used for windshield cleaner, for example).
When using a (horizontal) plastic drum:
For the large opening, use the adapter ring E9006 in combination with the spigot E9000. If the drum is lying horizontally, you can carefully loosen the small ¾’’ cap somewhat to bleed the drum. Another option for bleeding is to replace the ¾’’ cap with an E9000 spigot (do this when the drum is standing upright).
When using a (horizontal) metal drum:

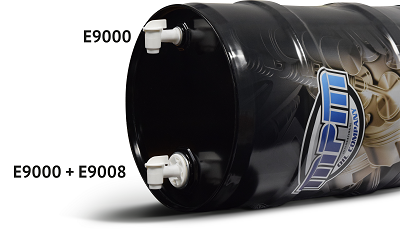

For the large opening, use the adapter ring E9008 in combination with the spigot E9000. If the drum is lying horizontally, you can carefully loosen the small ¾’’ cap somewhat to bleed the drum. Another option for bleeding is to replace the ¾’’ cap with an E9000 spigot (do this when the drum is standing upright).
Example:
Use to loosen/tighten the cops drum key E8060
The following items can be ordered from your wholesaler.

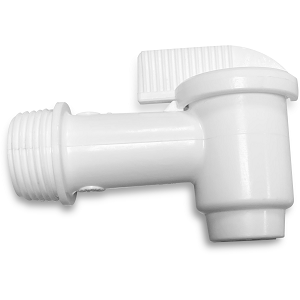

E9000
Spigot

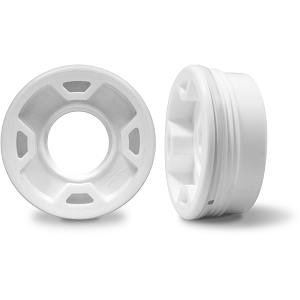

E9006
Adapter ring for plastic drums

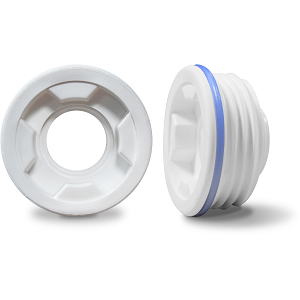

E9008
Adapter ring for metal drums

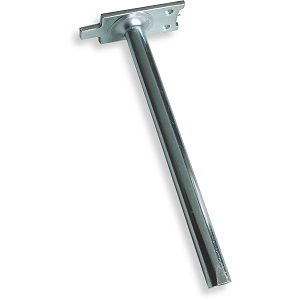

E8060
Drum key
